Tower Parking
Tower Parking – Built With HIgh-Quality Materials

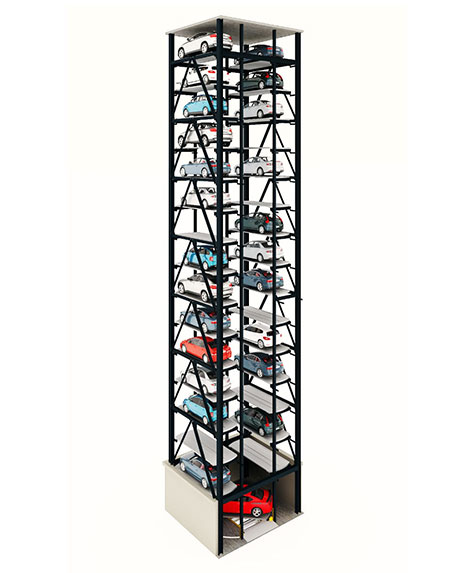

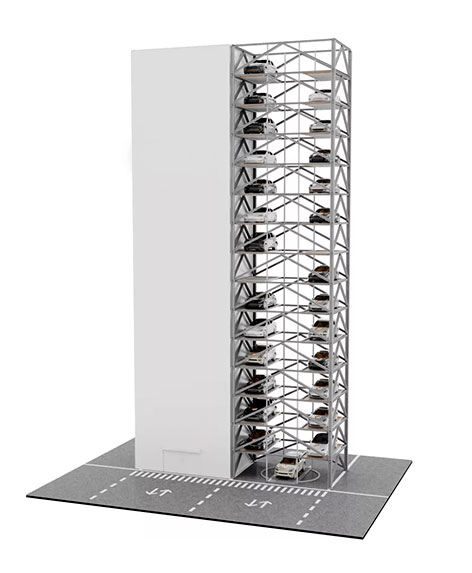

Tower parking represents a modern and efficient approach to addressing the challenges of limited parking space. Engineered by top Tower Parking Manufacturers in India, this innovative system is characterized by a vertical stacking mechanism, allowing multiple levels of parking within a compact tower structure.
This innovative Tower Car Park system is crafted for the contemporary challenges faced by crowded areas, ensuring a seamless parking experience. Inspired by the needs of busy metropolises like the Millennium Tower Parking, our solution features a vertical stacking mechanism within a sleek tower structure.
Trusted Brands of Tower Parking System
We, as one of the trusted Tower Parking Suppliers in India, design this product to revolutionize parking in urban landscapes, with a focus on efficiency and space optimization. This Tower Park Parking system is not just a parking facility; it’s a testament to cutting-edge technology.
Automated and user-friendly, it effortlessly lifts and places vehicles vertically, maximizing parking capacity in limited spaces. Elevate your parking experience with our Tower Parking system, a forward-thinking solution tailored to the demands of the modern urban environment. Contact Vision Elevators Private Limited for further information.
Technical
Technical Specifications
| Parking Capacity | 18 To 40 Slots | 42 To 60 Slots | ||
|---|---|---|---|---|
| Type | Elevator(Pallet Type) | |||
| Max Available Car | Length(mm) | 5100 mm | ||
| Width(mm) | 2100 mm | |||
| Height(mm) | 1650 mm (Sedan/ 1900 mm (SUV)) | |||
| Weight(mm) | 2000 mm (Sedan/ 2400 mm (SUV)) | |||
| Traction Unit | Motor | 30 Kw x 4P & DC, Brake | 37 Kw x 4P & DC, Brake | |
| Reducer | Helical i=1/30 | Helical i=1/24 | ||
| Speed | 65 To 75 M/Min | 90 To 120 M/Min | ||
| Mechanism | Wire Rope (6 Wires) 1:1 Rope Way | Lift Cage | Pallet | Motor | 1.5 Kw x 4p & DC Brake |
| Reducer | Helical i=1/25 | |||
| Speed | 26 M/Min | |||
| Mechanism | Direct Drive By Ring Gear & Pinion | Turn Table | Motor | 3.7 Kw x 4p & DC Brake |
| Reducer | Helical Worm i=1/25 | |||
| Speed | 2.5 RPM | |||
| Mechanism | Direct Drive By Ring Gear & Pinion | |||
| Electric Control | controller | Vector Inverter | ||
| Speed Control | Vector or PWM Control( Inverter Control) | |||
| Driving Control | PLC Control | |||
| Operation | Touch Screen or Computer (Optional) | |||
| Electric Control | Equipment | AC 415V, 3PH, 50 Hz | ||
| Lamps | AC 220V, Single PH, 50 Hz | |||
| Sliding Door | 2500(W)x 1800(H) (Sedan), 2000(H) (SUV) | |||
| Safety Device | Guide Lamps At Entrance And Inside Guide Mirror And Instruction Boards Photo Sensor For Positioning Car On Entry Level Detector Of Traction Wire Breakage Protector For Cage And Pallet Against Over Emergency Stop Switch | |||
With Latest Technology
Features
- Real-time status monitoring
- Space-efficient vertical design
- Quick retrieval and parking times
- RFID or app-based access control
- Multi-level stacking for increased capacity
- Automated vertical and horizontal movement
- Customizable configurations for various spaces
- Environmentally friendly with reduced emissions
Applications
- Car rental facilities
- Public transportation hubs
- Urban parking in high-density areas
- Commercial and residential buildings
- Airports for efficient long-term parking
- Smart city infrastructure development
- Office complexes with limited surface parking
- Shopping malls and entertainment complexes
What is a tower parking system?
It is a multi-level, elevator-based parking structure where a central lift moves vehicles vertically and a turntable or pallet places them in their slot. One tower can hold anywhere from 18 to 60 cars in a small footprint.
How many vehicles can a tower parking system hold?
Standard configurations park 18 to 40 vehicles. Larger systems go from 42 to 60. The final number depends on tower height, number of levels, and the mix of vehicle types being parked.
What power supply does a tower parking system need?
The main traction motor draws 30 kW for standard systems and 37 kW for larger ones. The system runs on AC 415V, 3-phase, 50 Hz supply. Lighting runs on AC 220V single phase. A stable, adequate power connection must be confirmed before installation.
How fast does the system park and retrieve vehicles?
The traction unit runs at 65 to 75 metres per minute for standard configurations and 90 to 120 metres per minute for larger systems. Pallet movement runs at 26 metres per minute. Most retrievals are completed in under 2 minutes.
How is the tower parking system controlled?
The system runs on PLC control with vector inverter speed management. Operation is via touch screen or computer — both options are available.
What safety features are built into the parking system?
Guide lamps at the entry point, guide mirrors, photo sensors for vehicle positioning, traction wire breakage detectors, cage and pallet overrun protection, and an emergency stop switch are all standard. The system will not operate if a vehicle is incorrectly positioned or if any sensor detects an anomaly.
How often does a tower parking system need maintenance?
Quarterly servicing is the minimum for systems in regular daily use. Maintenance covers the traction motors, wire ropes, pallet drive system, turntable mechanism, PLC control unit, sensors, safety devices, and structural components. Consistent servicing is what prevents unplanned downtime in a high-use facility.
Where does tower parking work best?
Anywhere land is limited but parking demand is high — apartment buildings, offices, malls, airports, transit hubs, and car rental facilities. If you need to park a large number of vehicles without using much ground space, a tower system is worth serious consideration.
