Make Your Vertical Transportation Easy With Our Stack Parking

Stack Parking – An Efficient Solution For Your Parking Needs!

Stack parking, also known as tower parking or puzzle parking, is an innovative and space-efficient solution for addressing the challenges of limited parking space in urban environments. Engineered by trusted Stack Parking Manufacturers in India, this automated parking system utilizes a vertical stacking mechanism to maximize the number of vehicles that can be accommodated within a compact footprint.

Vision Elevators Private Limited offers a cutting-edge Mechanical Stack Parking System, a revolutionary solution designed to address the challenges of limited parking space in urban environments. This state-of-the-art system operates on the principles of double-stack car parking, utilizing a sophisticated mechanical stacking mechanism to optimize available space.

Get A Wide Range of Stack Parking Systems

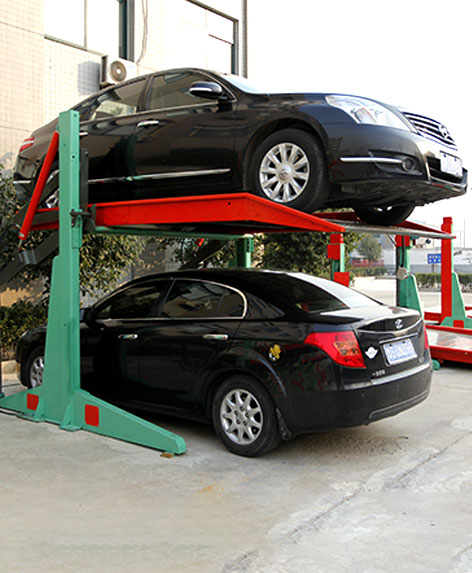

Cars are lifted and shifted into designated parking slots, allowing for multiple levels of stacked parking. This approach optimizes land use and is particularly well-suited for high-density areas where traditional parking layouts may be impractical. Offered by leading Stack Parking Suppliers in India, these systems contribute to the optimization of urban infrastructure, providing a streamlined and efficient solution to the perennial problem of parking scarcity in crowded city centers.

Whether implemented in commercial or residential settings, our stack parking solution ensures efficient land use and quick retrieval times. Get more details about our stack parking systems by contacting our expert team now.

Technical

Technical Specifications

Model		SEM 210	SEM 220	SEM 230
Parking Capacity		2 Cars
Machine Specification	Platform Length	3850
	Platform Width	2100	2200	2300
	Max. Loading Capacity	2000 Kg
Lifting	Lifting Mechanism	Geared Motor With Chain Sprocket Mechanism
	Geared Motor Power	1.5 Kw
	Up/Down Speed	30 Sec
Safety Devices	Spring Return Key Lock Switch
	Electromagnetic Brake
	Bottom Car Sensor
	Emergency Stopper
	Wheel Stopper
IP Rating	Controlpanel, Sensor's ,Limitswitch and Operating Panel are of IP 65 Protection
Electric Power	3 ph,AC 415V,50Hz
Available Car Dimensions	Length (Max)	Width (Min-Max)	Height (Max)	Weight (Max)
Sedan	5000	1800-2000	1500	2000 Kg
SUV	5000	1800-2000	2000	2000 Kg
Tall Boy	5000	1800-2000	1700	2000 Kg
Note: The Available Car Dimension Width Changes According To The Platform Width

Product Type	Combination Type	Required Clear Height	Lower	Upper
	Sedan + Sedan	3500	1600	1550
	SUV + Sedan	3800	2100	1550
	SUV + Tall Boy	4000	2100	1700
	SUV + SUV	4250	2100	2050
