Rotary Parking System
Rotary Parking System – Transforms Parking Challenges into Convenience!
A rotary parking system, also known as a turntable parking system, is an innovative solution designed to maximize parking efficiency in limited spaces. Unlike traditional parking structures, the rotary system utilizes a circular platform that rotates horizontally, allowing vehicles to be parked on multiple levels around the perimeter.
Vision Elevators Pvt. Ltd. takes pride in being one of the top Rotary Parking System Manufacturers in India. Known for our commitment to innovation and excellence, we bring you a top-tier solution that optimizes space while providing a seamless and efficient parking experience.
This space-saving technology is particularly beneficial in densely populated urban areas where land is scarce. As the platform turns, it presents available parking spaces to users, reducing the need for extensive ramps and driving lanes.
Rotary Parking System – A Practical Choice for Modern Parking Solutions
A Rotary Parking System stands out as an exceptionally efficient space-saving solution, accommodating multiple SUVs or sedans within just two conventional parking spaces. Our vertical rotary car parking system offers a space-saving marvel, ideal for urban settings where every square foot matters.
Our mini rotary parking system brings efficiency to a new level, allowing you to park more cars in less space. With this rotary type car parking system, say goodbye to the hassle of searching for a spot.
Our Parking System, designed with precision and reliability, reflects our dedication to delivering cutting-edge solutions for modern parking challenges. Choose VISION as one of the trusted Rotary Parking System Suppliers in India, revolutionizing your parking infrastructure.
Technical
Technical Specifications
| Car Series | SM20L | SM16L | SM14L | SM12L | SM10L | SM8L | SM16XL | SM18XL | SM14SU | SM12SU | SM10SU | SM8SU | SM12SUX | SM12SU2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specification | Sedan | Tallboy | SUV | SUV Big | |||||||||||
| Parking Capacity | 20 Cars | 16 Cars | 14 Cars | 12 Cars | 10 Cars | 8 Cars | 16 Cars | 18 Cars | 14 Cars | 12 Cars | 10 Cars | 8 Cars | 12 Cars | 12 Cars | |
| System Dimensions | Length (mm) | 6,510 | 6,370 | 6,370 | 6,370 | 6,370 | 6,370 | 6,370 | 6,370 | 6,370 | 6,370 | 6,370 | 6,370 | 6,370 | 6,470 |
| Width (mm) | 5,050 | 5,050 | 5,050 | 5,050 | 5,050 | 5,050 | 5,350 | 5,350 | 5,300 | 5,300 | 5,300 | 5,300 | 5,450 | 5,450 | |
| Height (mm) | 20,910 | 17,200 | 15,400 | 13,500 | 11,680 | 9,850 | 19,700 | 22,000 | 17,600 | 15,500 | 13,400 | 11,260 | 16,650 | 16,650 | |
| System Dimensions | Length (mm) | 5,200 | 5,200 | 5,200 | 5,200 | 5,200 | 5,200 | 5,200 | 5,200 | 5,200 | 5,200 | 5,200 | 5,200 | 5,200 | 5,300 |
| Width (mm) | 2,100 | 2,100 | 2,100 | 2,100 | 2,100 | 2,100 | 2,100 | 2,100 | 2,100 | 2,100 | 2,100 | 2,100 | 2,250 | 2,250 | |
| Height (mm) | 1,600 | 1,600 | 1,600 | 1,600 | 1,600 | 1,600 | 19,00 | 19,00 | 19,00 | 19,00 | 19,00 | 19,00 | 21,00 | 2,000 | |
| Weight (Kgf) | 2,150 | 2,150 | 2,150 | 2,150 | 2,150 | 2,150 | 2,000 | 2,000 | 2,400 | 2,400 | 2,400 | 2,400 | 2,400 | 2,650 | |
| Gear Motor | KW | 18.5 | 15 | 11 | 7.5 | 7.5 | 7.5 | 18.5 | 18.5 | 15 | 11 | 7.5 | 7.5 | 11 | 11 |
| Speed | M/Min | 5~8 | 5~8 | 5~8 | 5~8 | 5~8 | 5~8 | 5~8 | 5~8 | 5~8 | 5~8 | 5~8 | 5~8 | 5~8 | 5~8 |
| Motor Control | Inverter Control | ||||||||||||||
| Available Temperature | -40℃ To +40℃ | ||||||||||||||
| Noise | 65 To 75dB | ||||||||||||||
| Electric Power Source | AC415V, 3Ph, 50Hz | Safety Devices | Photo Sensor At The Front And Rear Of Entrance | Photo Sensor At Both Sides Of Car Opening | Over Current Relay For Motor Protection | Emergency Stop Device | Over Run Stopper On The Pallet | Car Falling Prevention Device (Double Guide Rail) | |||||||
With Latest Technology
Features
- User-friendly interface
- Space-efficient design
- Safety sensors and alarms
- Multi-level parking capacity
- Automated rotary platform
- Vertical stacking mechanism
- Remote monitoring and control
- Quick and efficient vehicle retrieval
Applications
- Urban parking facilities
- Automotive showrooms
- Airport parking structures
- Public transportation hubs
- Shopping malls and complexes
- Commercial and residential buildings
- Hotels and hospitality establishments
- Office and corporate parking facilities
What is a rotary parking system?

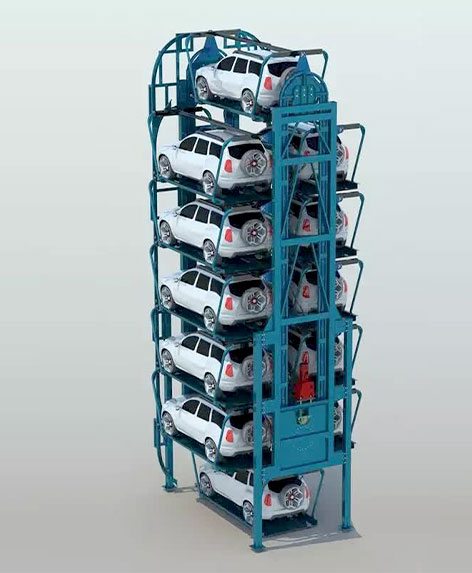

A rotary parking system is a vertical, circular parking structure where vehicles are parked on pallets arranged around a rotating tower. The system rotates like a Ferris wheel — bringing the required pallet to ground level for entry and exit. It parks multiple cars in the footprint of just two conventional spaces.
How many cars can a rotary parking system hold?
Depending on the model and vehicle type, Vision's systems park anywhere from 8 to 20 cars. There are separate configurations for sedans, tall boys, standard SUVs, and larger SUVs — so capacity varies based on what you're parking.
What space is needed to install a rotary parking system?

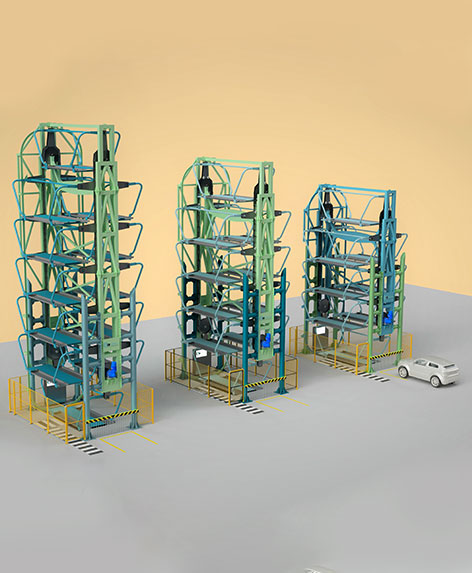

The system fits within a compact footprint — approximately 6.3 to 6.5 metres in length and 5 to 5.5 metres in width depending on the model. Height ranges from around 9.8 metres for an 8-car system up to 22 metres for an 18-car configuration. A site check is recommended before finalising the model.
What type of vehicles can use a rotary parking system?
Vision's systems are built for sedans, tall boys, standard SUVs, and larger SUVs. Each model has defined vehicle dimensions — maximum length of 5200mm, width up to 2250mm, and weight capacity up to 2650 kgf depending on the configuration chosen.
Is a rotary parking system safe?
Yes. The system includes multiple built-in safety devices — photo sensors at the front, rear, and both sides of the car entry opening, an over-current relay for motor protection, an emergency stop device, an over-run stopper on each pallet, and a car falling prevention system using double guide rails. These work together to protect both vehicles and users at all times.
Where does this rotary parking system work best?
Anywhere land is tight but parking demand is high — apartments, hotels, offices, malls, showrooms, and airport facilities. If you need to park more cars without expanding the building footprint, a rotary system is worth serious consideration.
How long does it take to retrieve a car from a rotary parking system?
The rotation runs at 5 to 8 metres per minute using inverter-controlled motors. In most cases, your car is at ground level within 1 to 2 minutes from the moment you request it.
